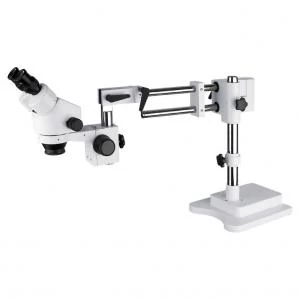

Stereo-microscopes owe their popularity to their wide range and ease of use. Due to its arm design, the SZM-650A is recommended for industrial use.
Our SZM-650A microscope is equipped with a 0.7x-4.5x zoom objective, which allows for stepless adjustment of magnifications from 7x to 45x with the standard WF10x eyepiece. The eyepiece has an outstandingly large field of view: at 7x magnification, it gives a field of view of 28.6 mm. Thanks to its complex construction, it provides a contrasty image with a sharp image right to the edge of the field of view. The head of the microscope can be slid up and down on a rod up to a maximum height of 380 mm, and can even be tilted sideways up to 420 mm, allowing objects of virtually any size to be placed underneath. There is 100 mm of working space under the lenses, which can be increased to 165 mm with an optional 0.5x reduction lens. The head of the microscope can be tilted as well as raised and lowered, giving the SZM-600A microscope greater freedom of movement.
The microscope is not equipped with illumination, so the use of some form of external illumination is highly recommended. By attaching the rubber eye cap included in the package to the top of the eyepieces, you can exclude side-scattered light, making observations more comfortable.
The binocular head is tilted at 45° and its eye relief is freely adjustable between 55-75 mm. Dioptric correction is provided on both sides. The basic package also includes a sturdy covering foil to protect the microscope from dust when not in use.
