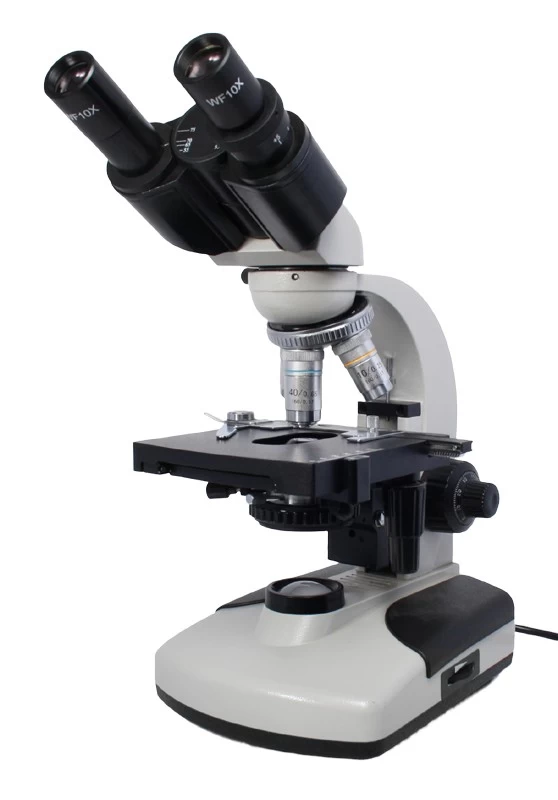

Want to know what makes our Scopium XSP-151B-LED biological microscope so popular with our customers? It's a surprisingly good quality for its affordable price, with a wide range of upgradable accessories. Its optical elements are made of glass, of course, and there is practically no plastic on the instrument.
Quality starts with the objectives

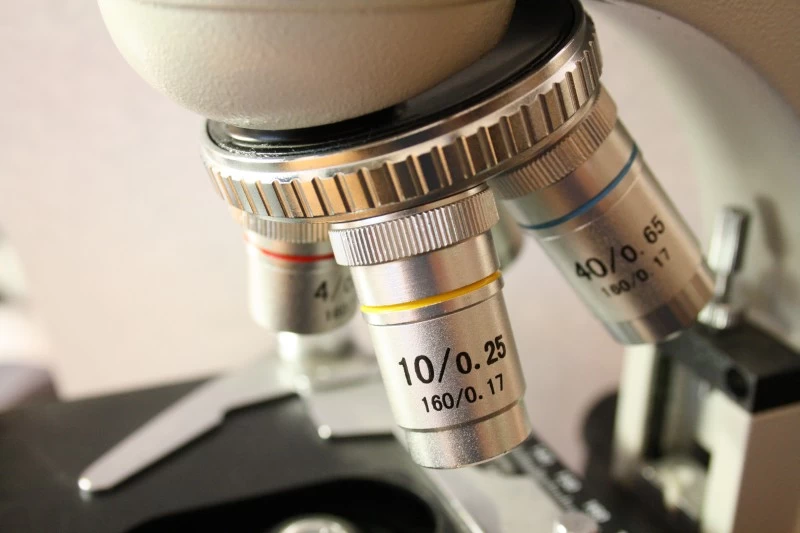

The microscope has four semi-plan acromatic objectives that draw sharp, contrasty images almost to the edge of the field of view. The standard equipment includes objectives with 4x-10x-40x-100x magnification, which are easily interchangeable thanks to their DIN standard mountings. You can choose from three different wide-angle plano-oculars (WF10X, WF12.5x, WF16x) for the microscope, allowing you to tailor the magnification to your needs. The 40x and 100x objectives are spring-loaded to protect the slide from breakage.
LED illumination for outstanding colours

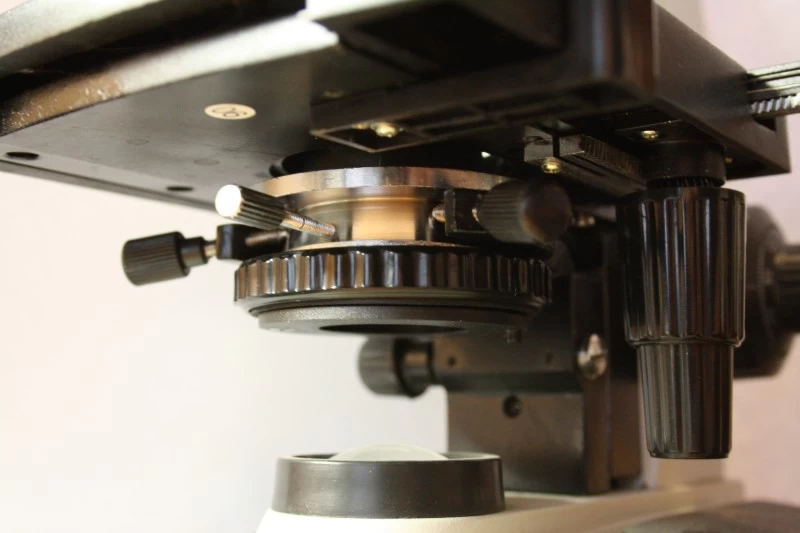

The slide is illuminated by a built-in LED illumination that in many ways outperforms conventional halogen bulbs: its colour temperature allows for a more contrasty image and its light is more even. In addition, it has the not inconsiderable advantage of not heating up and consuming less energy. The quality of the illumination can be fine-tuned with several solutions: a cone knob and an iris blend from 2 mm to 30 mm diameter can be used to adjust the intensity, and the Abbe N.A. 1.25 capacitor can even be used to change the focus. All these features allow the use of the Koehler illumination method.
Precision above all else
In addition to the "normal" focus adjustment, there is also a fine focus adjustment with a 0.01 mm step size so that the resulting image is always razor-sharp. The mount is equipped with fine adjustment and can be set to a precision of 0.1 mm - eliminating the need to touch the specimen manually, thus touching the microscope. The moving parts are free of any backlash, making it comfortable to work with.
Binocular head for long-lasting observation

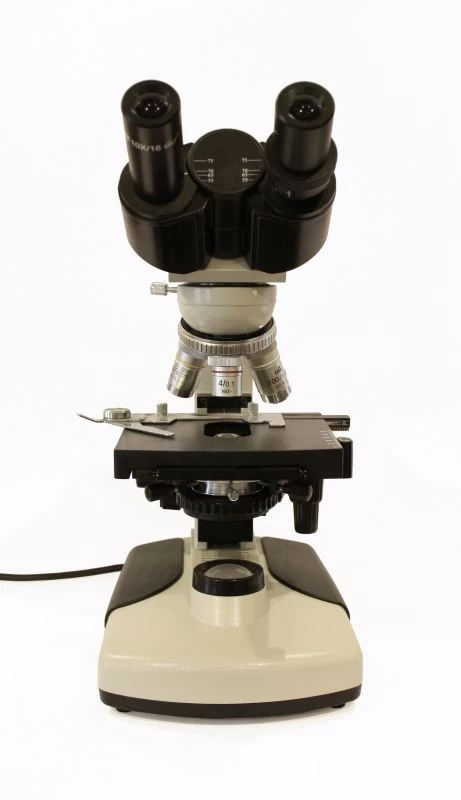

For those who are serious about observing the microscopic world, the binocular insight allows for long-lasting, comfortable observation. The insight head is tilted 30° and rotates 360° for comfortable use from any direction. A camera can be attached by removing one of the eyepieces.
The basic package also includes yellow, green and blue filters, plus a strong cover sheet to protect the microscope from dust when not in use.
Jaroslav (Brezno)
13. 10. 2021.
5.0 XSP-151B-LED biological microscope, 50x-125x-500x-1250x magnification
Advantage: Zvacsenie, vyhotovenie , vybava, moznosti pozorovania
Disadvantage: vcelku tuhy chod posuvov stolika
Vo svojej cenovej hladine vyborny mikroskop pre hobby pozorovanie. Vela objektivov, nastavitelna ergonomia, farebne filtre, vzorka imerzneho oleja v baleni. Zaostrovanie je bezproblemove. Je to moj prvy mikroskop, takze neviem velmi porovnavat ale zda sa mi trochu nedocentrovane zorne pole pri prechode medzi objektivmi (treba sa pohybat niekde do stran aby clovek nasiel to, na co zacentroval predchadzajuci objektiv - mozno je to len subjektivne). Inak som nadseny :). Dakujem.
matej degma (bratislava)
29. 07. 2015.
5.0 XSP-151B-LED biological microscope, 50x-125x-500x-1250x magnification
Advantage: všetko
| Mikroszkóp típusa: |
Biological microscope |
| Ajánlott alkalmazás: |
Semiprofessional microscopes |
| Objektív típusa: |
Semiplan achromatic |
| Objektívek nagyítása: |
4x 10x 40x 100x |
| Betekintőfej típusa: |
Binocular |
| Megvilágítás: |
LED |
| Felső megvilágítás: |
No |
| Alsó megvilágítás: |
Yes |
| Kondenzor: |
NA 1.25 |
| Tárgyasztal mérete: |
125x130 mm |
| Tárgyasztal finommozgatás: |
Yes |
| Kétsebességes fókusz: |
Yes |
| Okulár méret: |
23.2 mm |
| Súly: |
4.3 kg |
