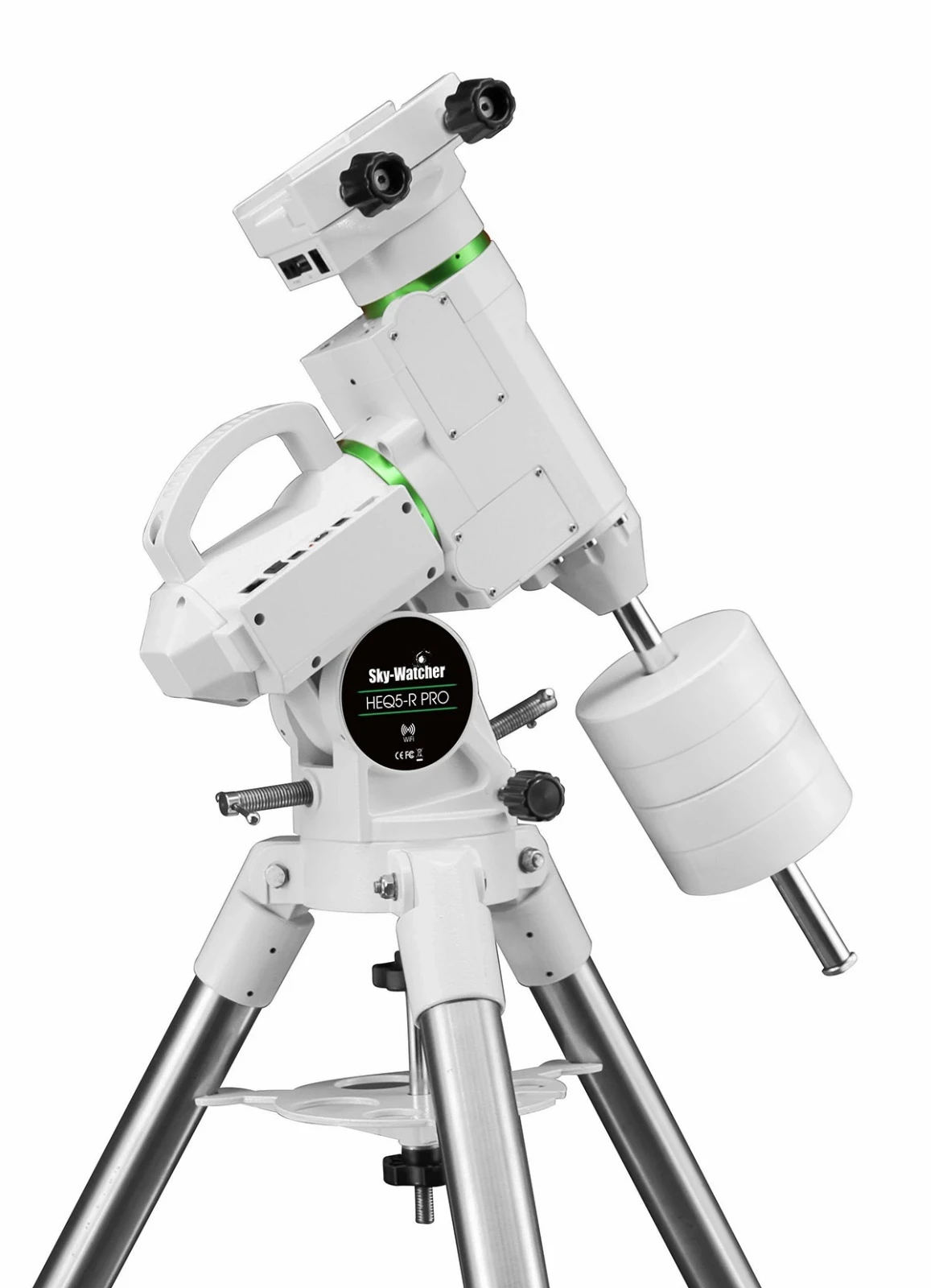

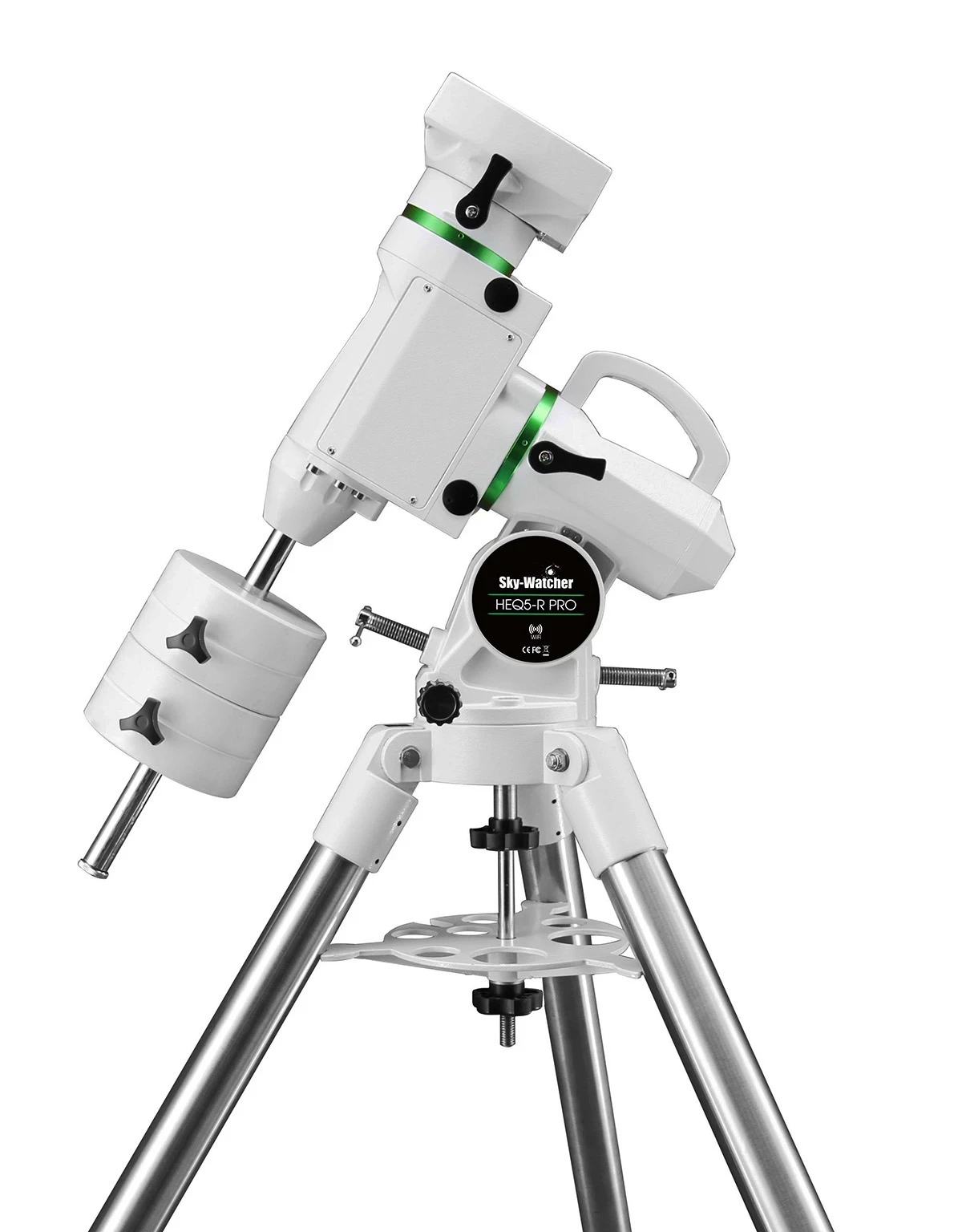

The SkyWatcher HEQ-5-R Pro Goto mount is an enhanced version of the previous HEQ5 Pro Goto, specifically designed for demanding astronomical observations and astrophotography. This mount offers increased stability and a higher 15 kg load capacity, thanks to the larger worm wheel, which ensures more precise and accurate tracking.

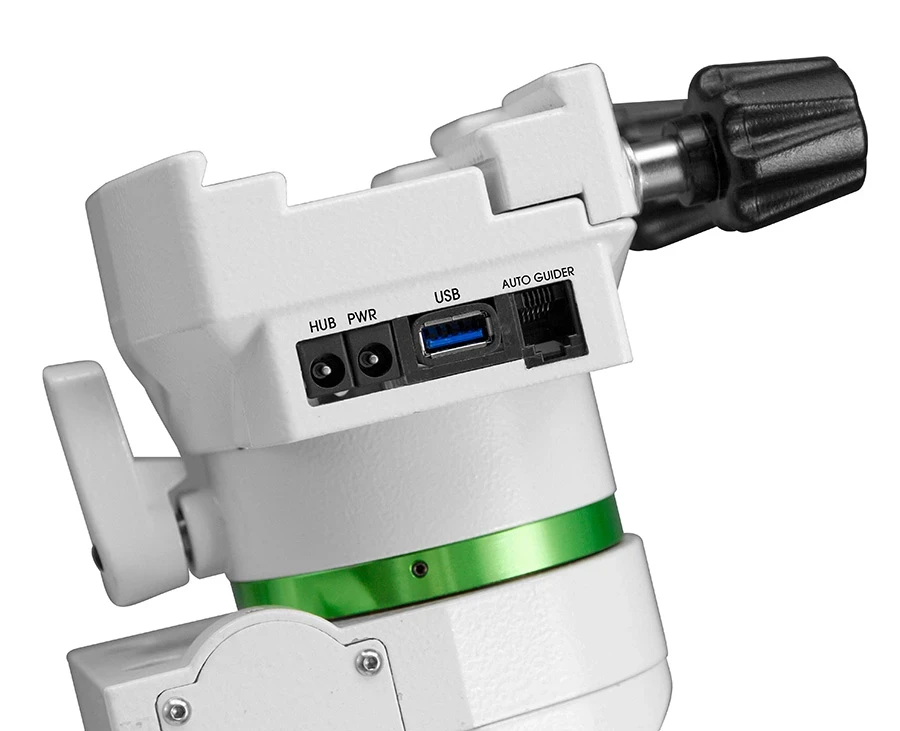

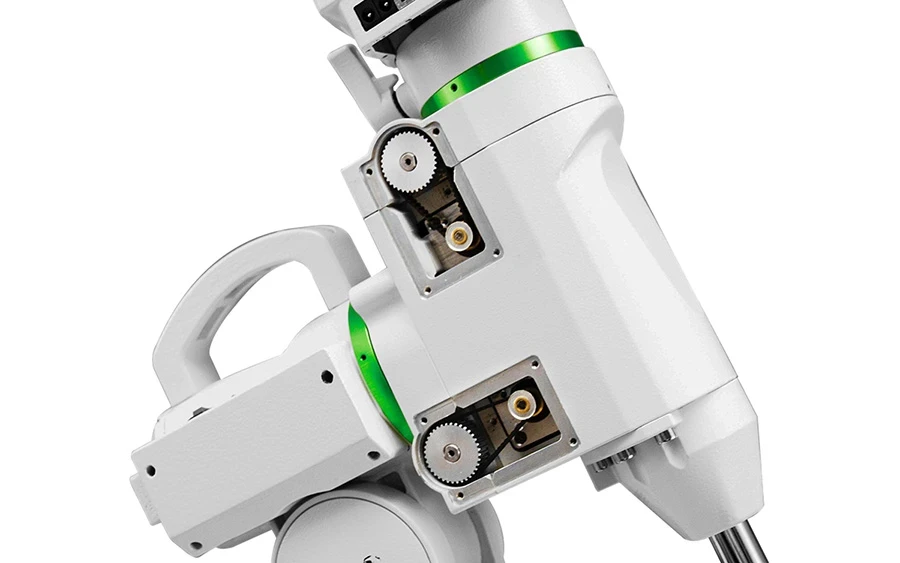

The SkyWatcher HEQ-5-R Pro Goto mount features a belt drive that reduces backlash between gears, providing smoother and quieter operation. The head's clutch part is equipped with built-in extra connectors, ports, a USB port, and a power connector, facilitating the connection and use of various devices without unnecessary cabling.
During polar alignment, the possibility of more precise and accurate altitude adjustment ensures more precise setup, while the built-in exposure controller allows for easy handling of DSLR and MILC cameras. The PPEC periodic error correction with a PEC encoder helps minimize mechanical errors, keeping long exposure shots sharp.
The SkyWatcher HEQ-5-R Pro Goto mount also includes a handle, making lifting and transportation easier and more convenient. This mount is an ideal choice for those seeking reliable and advanced technology for both astronomical observations and astrophotography.
Main Features:
- Maximum load capacity (tube + accessories): 15 kg
- Included counterweights 2 x 5.2 kg
- Head weight: 12 kg
- Leg weight: 5.2 kg
- Counterweight shaft diameter: 20 mm
- Power supply: 12V 3A
- Autoguider speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X

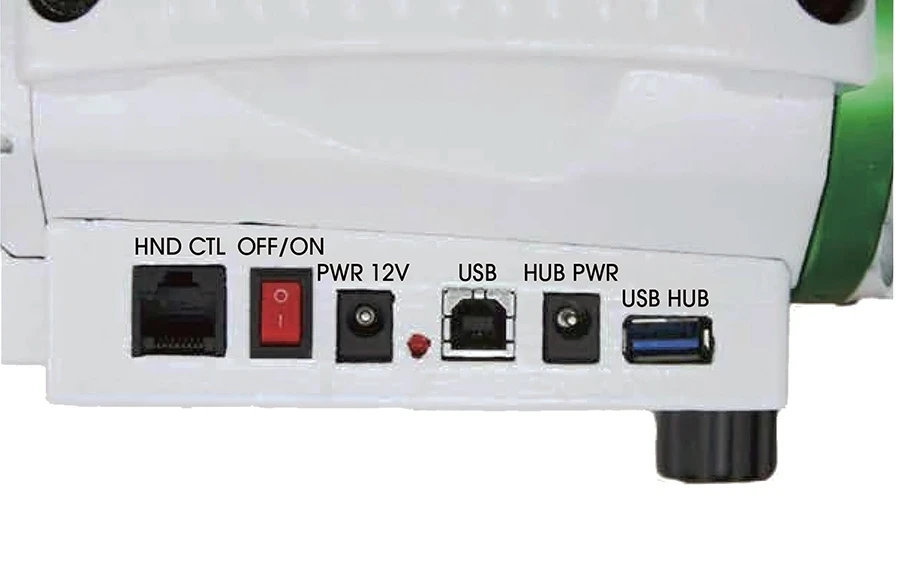

- Ports:
- Synscan hand controller connector
- Power connector input (12V 3A)
- Power connector output hub (12V 3A) on the head
- 2 power connector output hubs (12V 3A) on the clutch
- USB input on the head
- USB hub on the head
- USB hub on the clutch
- Autoguider connector on the clutch
- Built-in WiFi (information not yet confirmed)
- Maximum Goto speed: 3.2 degrees per second
- Autoguider speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
- Periodic error correction: 100 segment constant PEC encoder (no need for retraining)
- Goto accuracy: up to 5 arcminutes (RMS)
- Telescope connection: Suitable for Vixen or Losmandy dovetails (45mm/75mm)
- Polar scope not included (available as an accessory)
