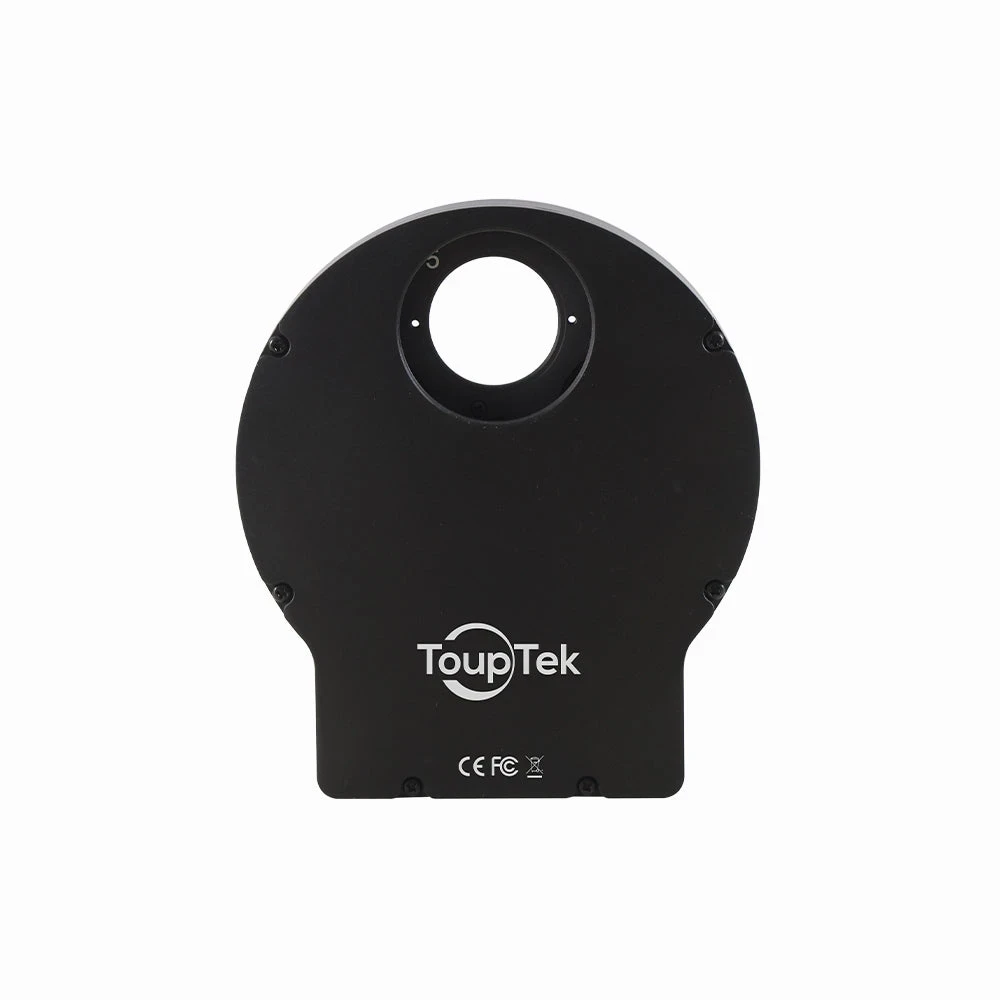

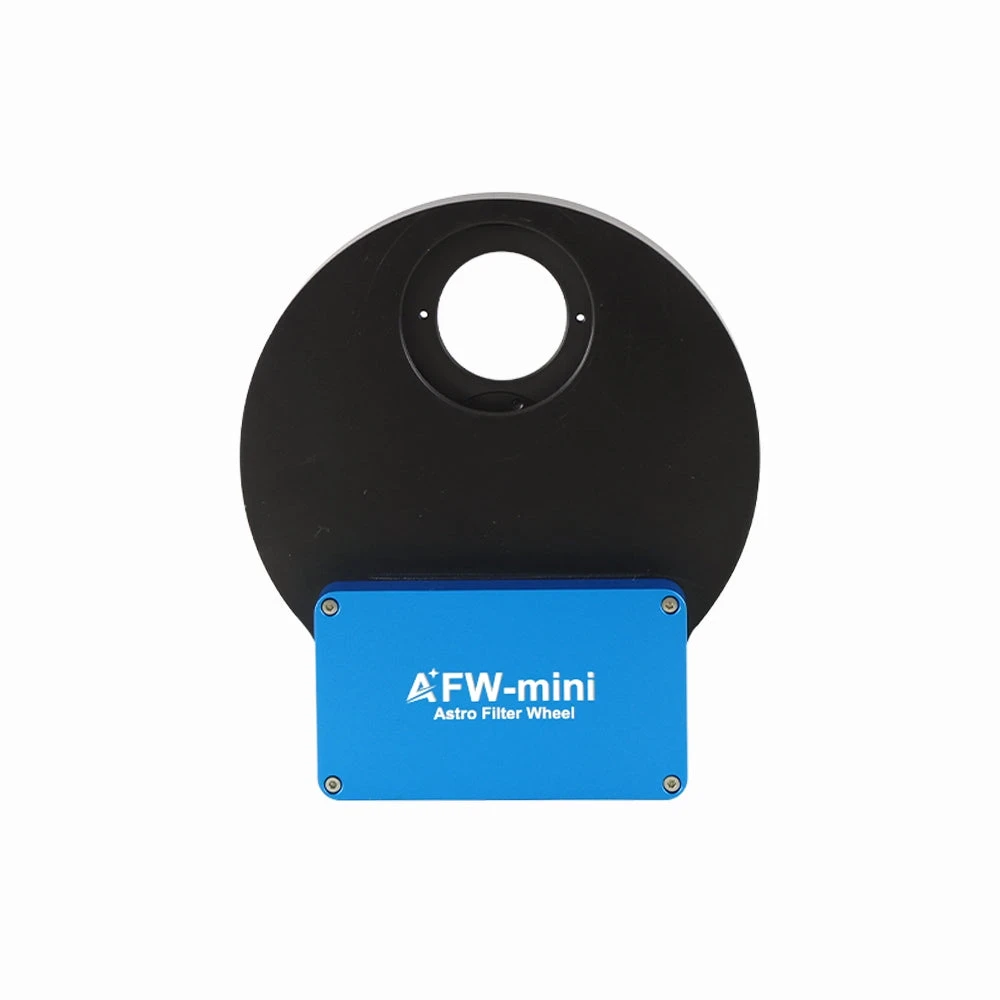

The ToupTek AFW-Mini motorized filter wheel accommodates 5×1.25" or 5×31 mm filters. Filters can be switched motorically via a computer or the ToupTek StellaVita device. It is an ideal choice for cameras with sensors up to 20 mm in diameter.
The filter wheel features a T2 thread on both sides, ensuring a simple and secure connection between the telescope and the camera. The device connects to a computer via a USB 2.0 port and, after installing the ASCOM driver, can be easily controlled using any compatible software.
The ToupTek AFW-Mini motorized filter wheel features a high-quality aluminium housing, measures just 20 mm in thickness, and weighs only 340 grams. Its slim design allows it to be positioned close to the camera sensor, helping to minimize the risk of vignetting even with fast optical systems.
Special attention has been given to protection against stray light, while filter changes are ensured by a powerful stepper motor that operates reliably even at low temperatures, along with ball bearings.
Package contents of the ToupTek AFW-Mini motorized filter wheel:
- ToupTek motorized filter wheel for 5×1.25" or 5×31 mm filters
- USB 2.0 cable (2 m)
- M54 (male) to 2" adapter (with 2" filter thread)
- M54 (male) to T2 (female) adapter (1 mm optical path)
- M54 (male) to T2 (male) adapter (1 mm optical path)
- M48 (male) to T2 (female) adapter (0 mm optical path)
- Screwdriver
