Pard NV007-S/SP fast mounting riflescope adapter

The Pard quick mount scope adapter can be used to fit the Pard NV007-A scope or the NV007-S, the bayonet of the two types of scope differs. The adapter provides a connection between the night vision scope and the rifle scope on the eyepiece side of the scope. Thanks to the clamping ring solution, the system provides extremely fast mounting and dismounting with any scope between 38-46 mm diameter measured from the eyepiece direction. The product consists of three main parts: -a ring, one half of which is attached to the Pard device, the other half is threaded to a narrower clamping ring, and the third element is a white plastic ring that fits between the two rings, from which you can choose the size that fits your scope.

When fitting, the narrow metal ring is first fitted to the scope from the eyepiece, followed by the white plastic ring with the tapered part facing the eyepiece, then the Pard bayonet ring is wrapped around the narrow ring until it is sufficiently firmly fixed to the scope. The night vision device can then be attached.

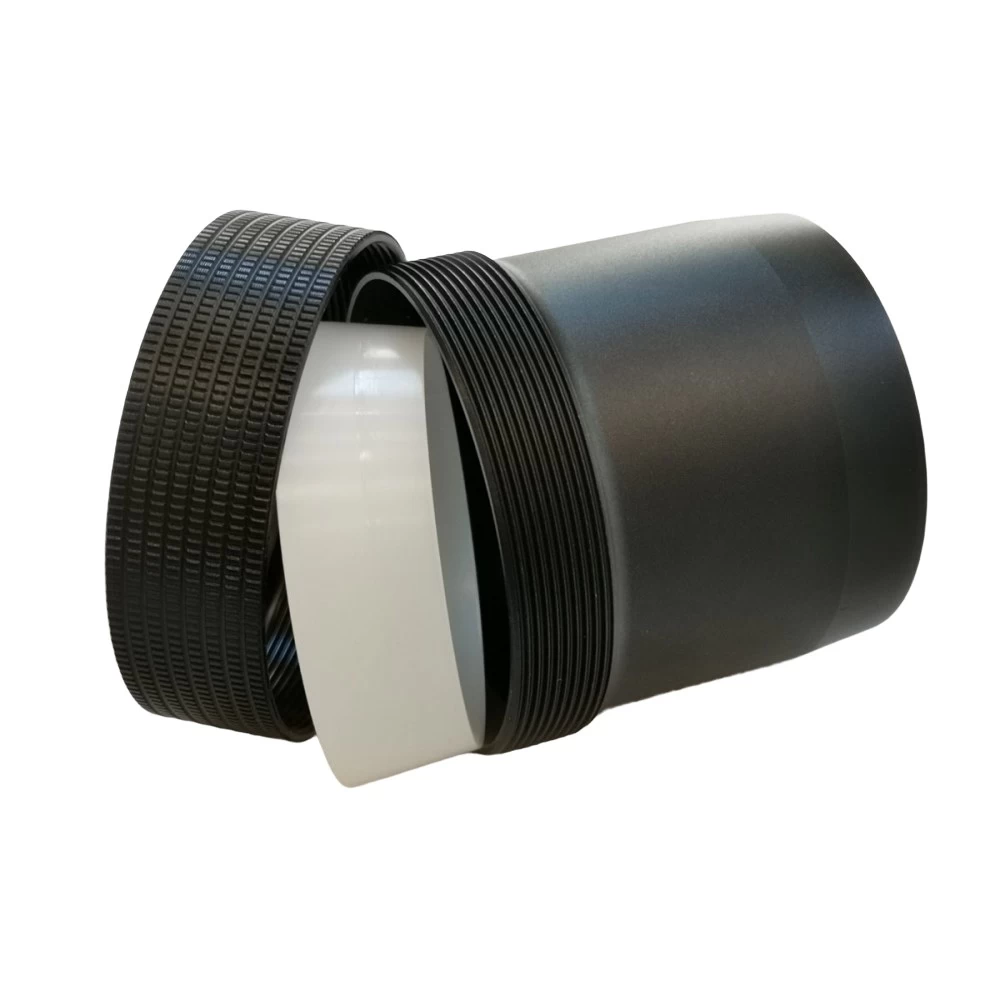

The product picture shows the adapter assembled with a scope (not included) and still in the mounting position, and at the bottom you can see the parts of the product between the two metal rings with the three different sizes of white plastic rings.
