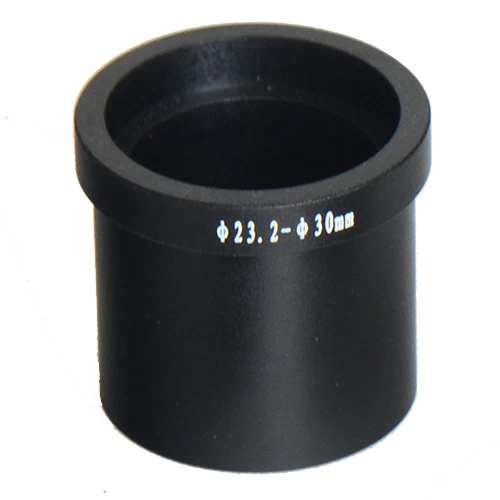

Camera adapter 23.2 mm / 30 mm for microscopes

Name: Camera adapter 23.2 mm / 30 mm for microscopes
SKU: 1644
Price: 12 EUR
Availability: InStock

SKU: 01644

In stock

12.00 €

Loyalty points: 1.2 points

−

pcs

Wishlist

Shipping charges: from 5.00 €

Our ToupCam and ToupCam XW microscope cameras can be mounted in a 23.2 mm diameter focuser, while the ToupCam UHP version is C-mount. The table below summarises which camera adapter is required for each microscope model.

Microscope	23.2 mm camera	C-mount camera
XSP-30 series	No adapter required	C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens
XSP-151 series	No adapter required	C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens
XSP-251T (*)	No adapter required	C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens
XTD series	23.2 mm / 30.5 mm adapter	(C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens) AND 23.2/30.5 mm adapter
SZM-200A, SZM-250A, SZM-400A, SZM-450A, SZM-500A, SZM-600A, SZM-650A	23.2 mm / 30 mm adapter	(C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens) AND 23.2/30 mm adapter
SZM-200T, SZM-250T, SZM-400T, SZM-450T, SZM-500T, SZM-600T, SZM-650T (*)	No adapter required	C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens OR C-mount focuser for SZM microscope

(*) If you want to use the camera in the eyepiece instead of the trinocular port, you will need a 23.2 mm / 30 mm adapter
